SET UP YOUR HOME HUB

Counter stand instructions

Follow these steps to securely mount your Home Hub. Flip through each card for detailed guidance.

1 of 4

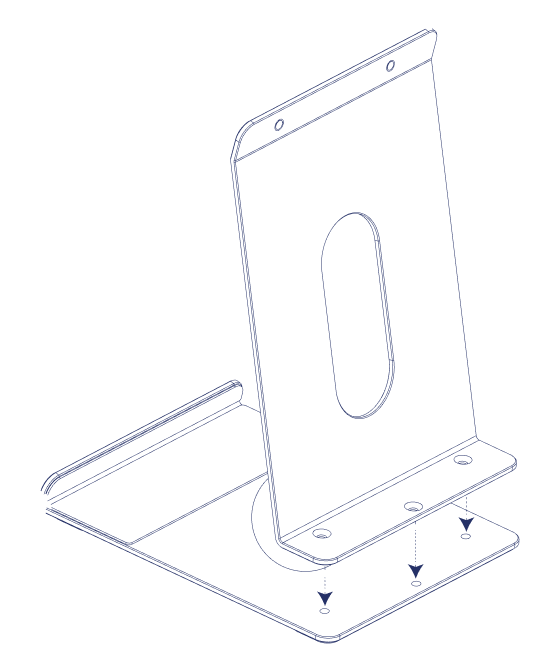

The upper counter stand held upright over the lower stand, with arrows showing its screw holes lining up with the mounting holes below

Align the upper and lower stands

Level the lower counter stand, hold the upper stand firmly in place, and align the upper stand's screw holes with the mounting holes on the lower stand.

Keep the upper stand steady while you confirm the holes line up so you can assemble the counter stand securely.

2 of 4

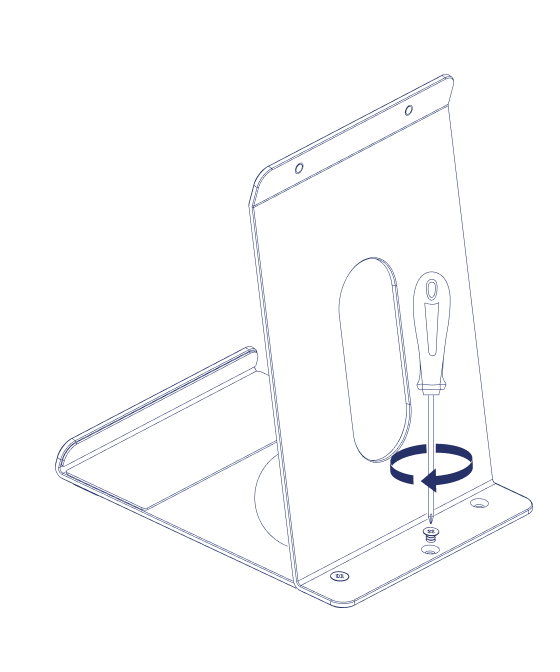

A screwdriver tightening a screw through the base of the assembled counter stand

Secure the base

Use the KM3x4mm screws to secure the base through the three holes. Tighten firmly with a screwdriver, but avoid overtightening.

3 of 4

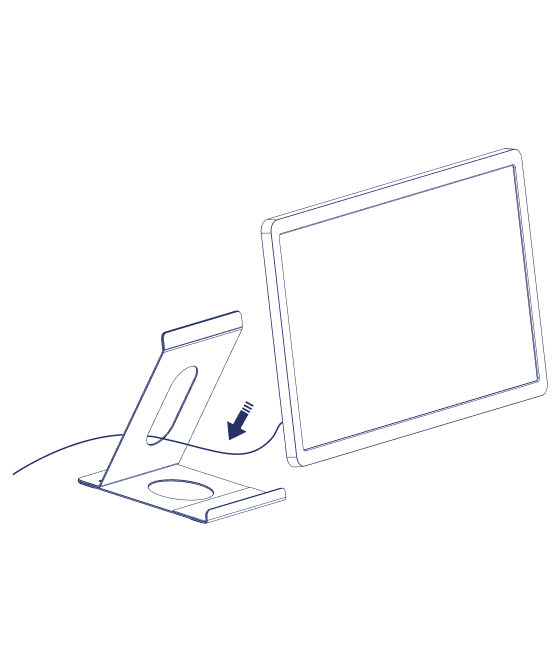

The assembled counter stand upright with the power cord routed through it toward the back of the Home Hub

Position the counter stand

Rotate the assembled counter stand to its upright position. Route the power cord through the stand and plug it into the device’s DC input.

4 of 4

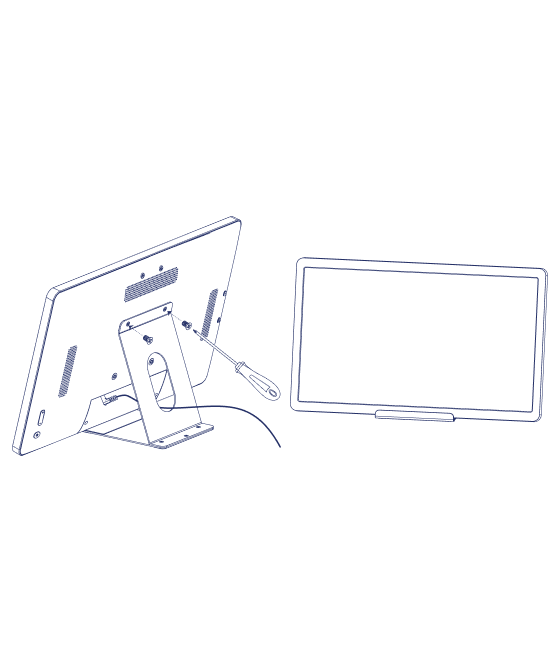

The back of the Home Hub attached to the counter stand with screws, next to a front view of the device standing in landscape

Secure the device on the stand

Center the device on the desktop stand. To use in landscape mode, secure it with two KM4x6 screws for extra stability. To use in portrait mode, no screws are required.
